Warmly celebrate the successful experiment of Lime Powder Pneumatic conveying system in Zao
The experiment on the pneumatic conveying system of lime powder in Zaozhuang Sunweigh Technology Co., Ltd is a complete success. The success of lime powder pneumatic conveying experiment indicates that Zaozhuang Sunweigh Technology Co., Ltd. is in the forefront of many industries in conveying powdery materials with large water content in pneumatic conveying system.
Pneumatic conveying system is a conveying system which uses the pressure of gas to pipeline the powder or particle material to the designated place. Common pneumatic conveying systems are made up of Roots fans and bin pumps. Roots blower uses the blowing force of the fan to blow the material through the pipe to the designated place, and the bin pump uses the high pressure gas stored in the cylinder to control the high pressure gas to carry the material through the control valve for transportation. The cost of Roots fan is lower than that of bin pump, but it is not as far as the conveying distance. Roots blower is generally suitable for powdered materials with low water content and specific gravity. Body, the transport distance varies according to the specific gravity of the material, up to 600 to 700 meters. The silo pump is suitable for powder and particle materials with high specific gravity or distance. Because of the high pressure and high pressure, it is no problem that materials can be transported as far as 3000 meters away from the designated place.

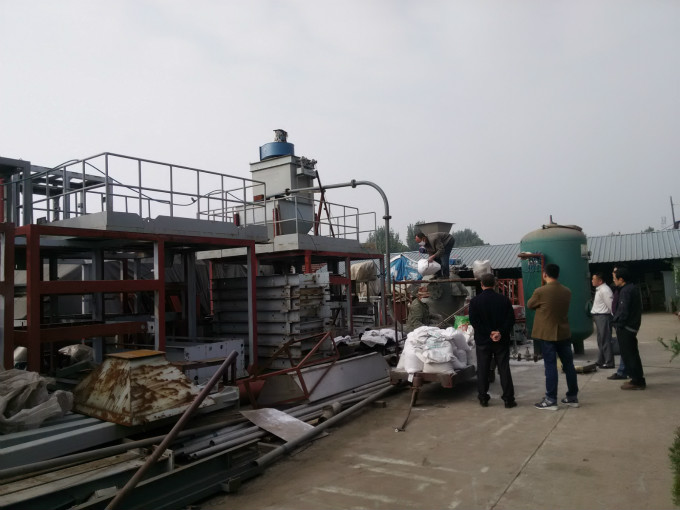

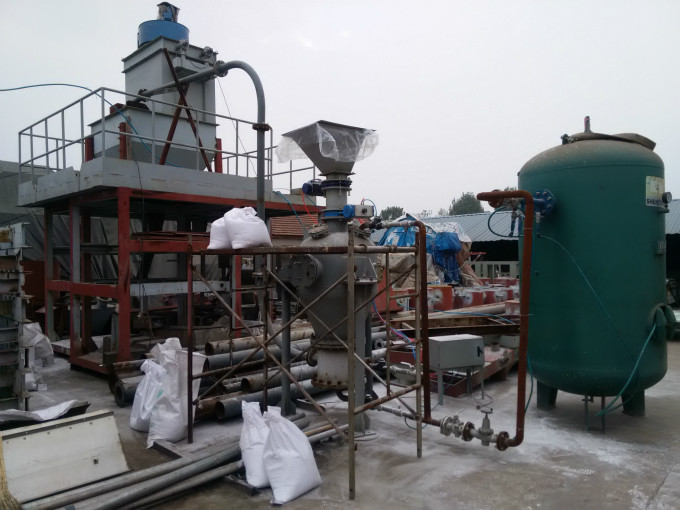

In this experiment of lime powder pneumatic transportation, due to the fact that the weather has just finished a rain, and lime powder is easy to absorb moisture, the moisture content in lime powder is large. In the course of the experiment, the lime powder was transported to the designated silo by the pump under the action of pressure gas, because of the high pressure spraying on the wall of the silo, the moisture content of the material was easy to form, which resulted in the difficulty of discharging part of the lime powder material. However, after the technicians study the position of the silo feeding port and the vibration motor, the vibrating silo can solve the problem that lime powder is not easy to cut because of the plate junction, and can ensure the smooth discharge of lime powder. The experiment of pneumatic transportation of lime powder has been successful.
