Gravity type feeding full-automatic packaging machine

      The gravity feeding full-automatic packaging machine is a full-automatic packaging machine for packaging granular materials. The full-automatic packaging machine is a feeding method that used by Zaozhuang Sunweigh Technology Co., Ltd  gravity feeding type of granular materials to realize blanking. it is widely used in full-automatic packaging of grain, feed, fertilizer, chemical raw materials, briquette and other materials.

自动上袋机

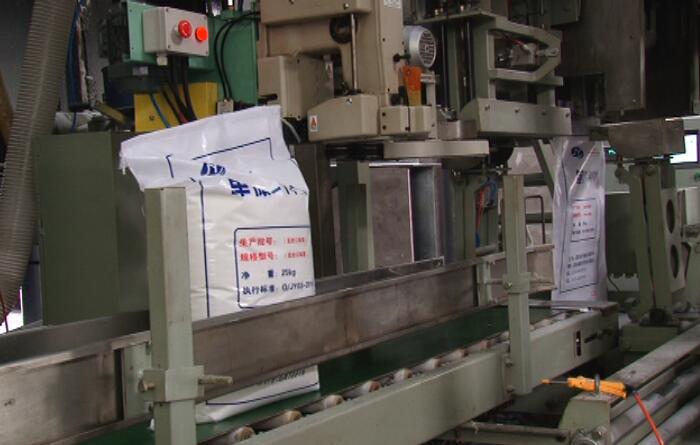

Product  Introduction Gravity Type Feeding Full-automatic Packaging Machine

     The gravity type feeding full-automatic packaging machine mainly comprises by a material bin, an electromagnetic valve, a weighing device, a vibration system, a bag clamping device, an automatic bag feeding mechanism, an automatic hemming machine, an automatic sack closing machine and a conveyor. The material bin of the full-automatic packaging machine is used for storing materials, the electromagnetic valve controls the blanking of the materials, the materials enter the weighing device through the electromagnetic valve, the weighing device weighs the materials, and then the weighed materials are automatically filled into the packaging bag, the vibration system plays a vibration role in the blanking process of the materials, the phenomena of material clamping and sticking are prevented in the blanking process of the materials, the smooth packaging of the materials is ensured, the automatic bag feeding device replaces the original manual bag feeding, and the bagging clamp clamps the packaging bag, After the material is filled, the entrainment clamp will automatically release the packaging bag, the conveying will convey the packaging bag to the hemming machine for hemming and sack closing, and finally the conveyor will output the packaging bag for stacking operation. The whole process is completed independently by the full-automatic packaging machine, realizing the full-automatic operation of material packaging.

Functional Characteristics of Gravity Type Feeding Fully Automatic Packaging Machine

  1. The gravity feeding full-automatic packaging machine can realize the automatic sorting of packaging bags, automatic bag opening and sucking, automatic bag loading, full-automatic weighing and metering, counting, filling, moving and outputting, and importing into the full-automatic sewing machine for automatic folding and sewing. Realize the full automation of the whole packaging process, digitalization and unmanned, environmental protection and low energy consumption.
2. The  machine is controlled by touch screen. The operation, specification switching and maintenance are very convenient, safe and reliable. The whole set of equipment has a complete automatic detection program, automatic deviation correction, automatic fault detection ,so very prompt, convenient to  maintenance. The operation of the equipment is personalized without manual participation, and the fault automatic alarm prompts the operator of the fault location, fault phenomenon and fault detection and treatment method.
3. The full-automatic packaging machine can be applied to any process production line of granular materials that need to be packaged by packaging bags to realize the automation of the material packaging process.

全自动包装机

Technical Parameters of Gravity Type Feeding Fully Automatic Packaging Machine

1. Packaging scope: 20 - 50kg bagged products;
2. Packaging materials: paper bags, woven bags ( coated films ) and double-layer composite bags;
3. Packaging speed: 600 - 1200 packages / hour ( packaging speed varies according to materials );
4. Packaging accuracy: 0.2%;

5. Packaging materials: granular materials;
6. Compressed air: 0.4 ~ 0.8 MPa, maximum air consumption 1.6 m³/min;
7. Power supply: 6.2 kW AC 380 V 10% 50 Hz.
The gravity Type feeding full-automatic packaging machine mainly packs granular materials, and the packaging effect for powder and mixed materials is poor, even these material cannot be packaged. The powder and mixed materials can be selected from the company's special powder full-automatic packaging machine or mixed materials full-automatic packaging machine.
