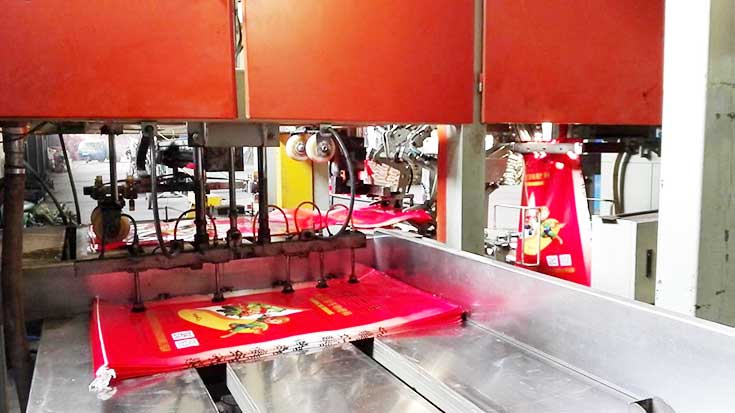

Fully Automatic Packaging Machine for 20-50Kg Woven Bag

     The full-automatic packaging machine for 20-50Kg woven bags is a fully-automatic packaging machine with adjustable weight carefully developed by Zaozhuang Sunweigh Technology Co., Ltd. the full-automatic packaging machine can package materials with a weight ranging from 20kg to 50kg, with high packaging precision, fast speed and stable performance. The full-automatic packaging machine can package powder materials, granular materials and mixed materials, and can be widely applied to full-automatic packaging in many fields such as grain, feed, starch, flour, chemical fertilizer, chemical industry, medicine, briquette and the like.



Product Introduction of Fully Automatic Packaging Machine

This fully automatic packaging machine can be applied to woven bags and kraft paper bags. The full-automatic packaging machine is mainly composed of automatic bag feeding machine, quantitative packaging scale, conveyor, automatic hemming machine, automatic sack closing machine and other equipment. The automatic bagging machine replaces the original manual feeding. In order to realize full-automatic packaging, the quantitative packaging scale can automatically weigh the materials, and then automatically fill the weighed qualified materials into the packaging bag. The conveyor transports the packaging bag to the automatic hemming machine. The automatic hemming machine performs hemming and seaming operation on the packaging bag. Finally, the conveyor outputs the packaging bag for stacking operation. The whole process is completed independently by the full-automatic packaging machine without the participation of a worker. Reduce enterprise costs and improve product market competitiveness.

Functional Characteristics of Fully Automatic Packaging Machine

The machine can realize automatic bag feeding, bag opening, weighing, metering, moving and importing, and seam closing output; The packaging range can be adjusted to 20-50Kg. The full-automatic sewing machine automatically sews bags to realize full automation of the whole packaging process. The equipment is controlled by PLC and designed for operation through touch screen. The equipment is easy to operate and convenient for customers to use. Metal detectors and automatic checkweigher can be selected randomly.

Technical Parameters of Fully Automatic Packaging Machine

Packing range: 20 ~ 50kg; Packaging materials: paper bag, woven bag ( coated film );
Packaging speed: 200 ~ 1200 packs / hour ( packaging speed varies according to materials );
Packaging materials: granular materials, powder materials, flake or mixed materials;
Feeding method: different feeding methods can be selected according to different materials;
Compressed air: 0.4~0.8Mpa, maximum air consumption 1.6m³/min；
Power: 11kw；
Power supply: AC380V±10% 50Hz.
