Briquette packing machine

Coal plays an absolute dominant role in China's disposable energy consumption. The current situation of China's energy use determines that the focus of China's current energy policy adjustment lies in the clean and efficient use of coal. As a kind of clean coal production technology, briquette production has many advantages, such as simple operation, mature technology, low cost, obvious energy saving and efficiency improvement, and less waste emissions. It is worth our vigorous development. Zaozhuang Sunweigh Technology Co., Ltd. has developed a packaging machine specially for briquette to meet the needs of energy policy adjustment. The briquette packing machine produced by the company has high packing precision and fast cutting speed, which is suitable for briquette packaging of various shapes.

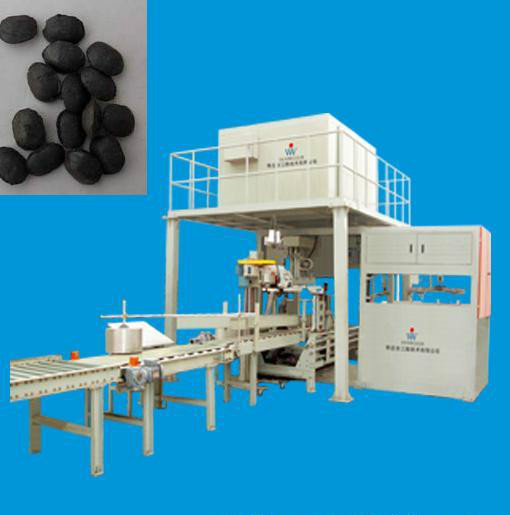

Briquette Packaging Machine Product Introduction

The briquette packing machine mainly adopts gravity feeding mode. Because the briquette itself has large particles, it does not need to consider the cutting problem. The gravity feeding mode meets the needs of briquette packing. In addition, the feeding device of the packing machine itself can meet the needs of normal production of briquette packing. The worker sets the packing bag at the lower entrance by hand, the bag clamp holds the packing bag, the automatic weighing device automatically fills the weighed briquette into the packing bag, the conveyor conveys the packing bag to the folding machine, the folding machine automatically seams the packaging bag, and finally the packed packing bag is exported to the tail by the conveyor to wait for stacking operation.

Functional characteristics of briquette packer

Manual assistance in bagging, automatic weighing, bag clamping, filling, automatic conveying and sewing;

Gravity feeding method is adopted to ensure the cutting speed and accuracy through instrument control.

With high precision sensor and intelligent weighing controller, the measurement accuracy is high and the performance is stable.

Electrical and pneumatic components are imported components with long service life and high stability.

Automatic correction of material overshoot, automatic zero tracking, overshoot detection and suppression, over and under alarm;

Photoelectric induction automatic sewing package after pneumatic shearing, saving labor.

Technical parameters of briquette packer

Weighing range: 5-50kg

Grading value: 10g

Weighing accuracy: 0.2% F, S

Weighing speed: 600-800bag/h

Working environment: relative humidity ≤ 90%

Power supply: AC380V 50Hz

Power: 1.3KW

Air pressure: 0.4-0.8 Mpa

Air consumption: 1m³/h
