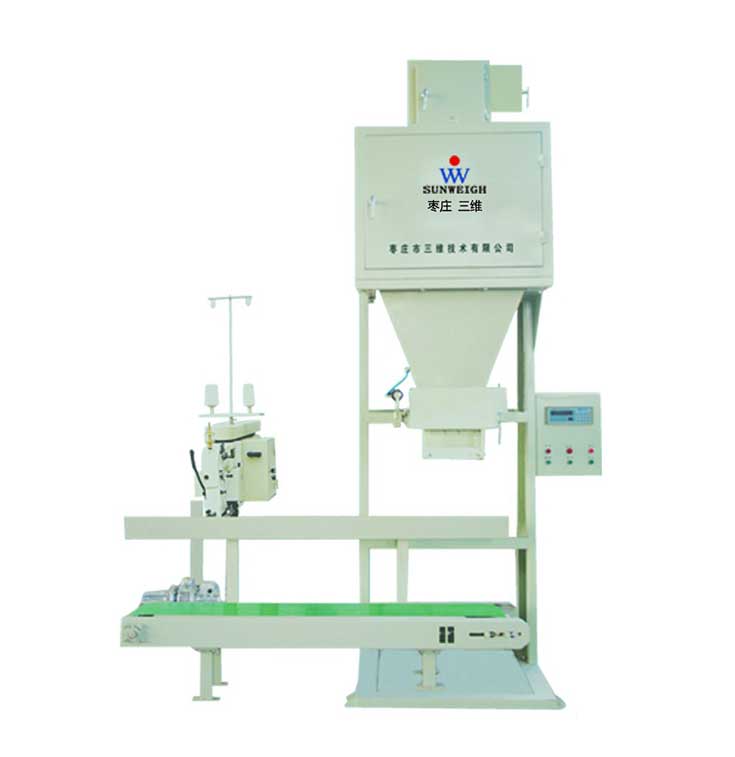

Quantitative Packaging Machine SWM-Z-S

Introduction to SWM-Z-S Products of Quantitative Packaging Machine

Quantitative packaging machine SWM-Z-S is a quantitative packaging machine specializing in granular material packaging, also known as granular quantitative packaging machine. The SWM-Z-S quantitative packaging machine produced by our company has the advantages of fast packing speed and high precision. It is a fast quantitative packaging machine which integrates weighing, sewing, packaging and conveying. The weighing accuracy is not affected by the external environment, and its stability is high. It has been unanimously recognized by the vast number of users for many years. At the same time, the granular quantitative packaging machine is also widely used in the packaging of chemical, building materials, metallurgy, ports, mines, food, grain and other materials.

Functional Characteristics of SWM-Z-S Quantitative Packaging Machine

Machine needs manual assistance in bagging, automatic weighing, entrainment, filling, automatic conveying and sewing bags.
Gravity feeding method is adopted to ensure the cutting speed and accuracy through instrument control.
With high precision sensor and intelligent weighing controller, the measurement accuracy is high and the performance is stable.
The contact part with the material is made of stainless steel with high corrosion resistance.
Electrical and pneumatic components are imported components with long service life and high stability.
The control cabinet is sealed and suitable for harsh dust environment.
Automatic correction of material overshoot, automatic zero tracking, overshoot detection and suppression, over and under alarm;
Optional automatic sewing and wrapping thread breaking function: photoelectric induction automatic sewing and wrapping after pneumatic shearing, saving labor.

Working Principle of Quantitative Packaging Machine SWM-Z-S

Particle quantitative packaging machine needs manual bagging, manual bagging bags into the lower opening, pulling the clamp switch, the control system receives the signal of bagging, drives the cylinder, drives the clamp to clamp the bags, and starts the feeding mechanism to feed the materials in the bin into the weighing hopper. After reaching the target weight, the feeding mechanism stops feeding, the bin closes, and the weighing hopper is driven by gravity feeding. After filling, the belt holder opens automatically, the filling bag falls on the conveyor automatically, and the conveyor conveys back to the sewing machine, which is manually assisted to sew the package, and outputs back to complete the packaging process.

SWM-Z-S Technical Parameters of Quantitative Packaging Machine

Model Specification: DCS-Z-S

Weighing range: 5-50kg

Grading value: 10g

Weighing accuracy: 0.2% F, S

Weighing speed: 300-400 bag/h

Working environment: relative humidity ≤ 90%

Power supply: AC380V 50Hz

Power: 1.3KW

Air pressure: 0.4-0.8 Mpa

Air consumption: 1m³/h
