Fully automatic bag-feeding packaging machine

Zaozhuang Sunweigh Technology Co., Ltd. has been developing and producing packaging machines for various materials for 20 years since 1996. The full-automatic bag-feeding packaging machine developed and manufactured by the company has beautiful design, stable product performance, high production efficiency, and is widely used in automatic packaging of many materials such as grain, flour, feed, fertilizer, medicine, chemical industry, briquette and so on. As soon as the full-automatic bag-feeding packaging machine came out, it attracted the attention of many industries.

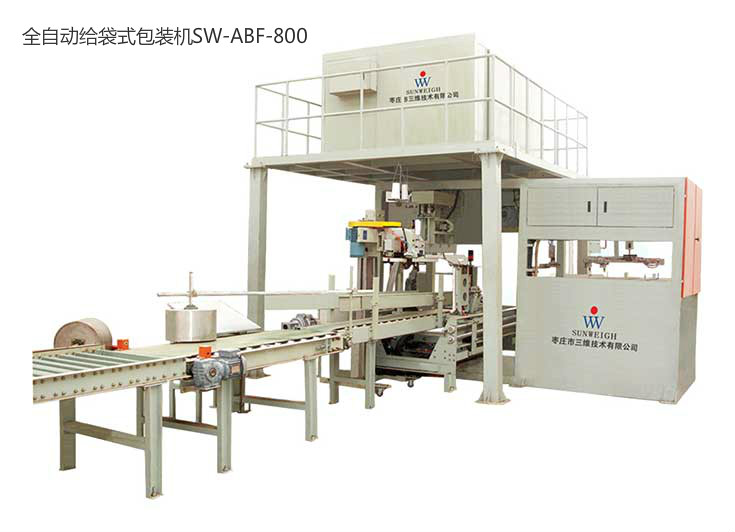

Introduction of SW-ABF-800 Fully Automatic Bag Packing Machine:

Fully automatic bag-feeding packaging machine is that the packaging machine automatically packs the bags to the lower outlet to replace the original manual bagging. Fully automatic bag-feeding packaging machine can fully realize human functions. Firstly, the automatic bag-feeding machine in the working unit of the automatic bag-feeding machine picks up the neatly placed bags, transfers them to the belt-carrying clip, opens the bags, clamps the bags, and then runs to the lower inlet and automatically sets them on the lower outlet. The sensor of the automatic bag-feeding machine automatically detects whether the bags are standard or not. After the automatic weighing system completes the automatic weighing of the materials, the bag-feeding machine automatically detects whether the bags are standard or not. Automatic filling into the packaging bag, through the automatic folding sewing machine to complete the packaging bag sewing package. Finally, the conveyor is transported to the palletizer to complete the whole packaging process.

1. The technological process of automatic bagging machine:

Zaozhuang Sunweigh technology limited public research and development of automatic bagging machine obtained national invention patents. The patent of the upper bag manipulator (the working process of the upper bag manipulator) is described as follows: the bag taking mechanism consists of a connecting arm, which is articulated with two upper support arms and two lower support arms, respectively. A telescopic mechanism is articulated between the back end of the upper support arm and the back end of the lower support arm, one side of the upper support arm is articulated with an upper clamp arm, and the front end of the upper clamp arm corresponds with the front end of the upper support arm. The upper jacket cylinder is articulated between the back end of the upper jacket arm and the upper jacket arm, and the lower jacket arm is articulated on one side of the lower jacket arm. The front end of the lower jacket arm corresponds to the front end of the lower jacket arm, and the lower jacket cylinder is articulated between the back end of the lower jacket arm and the lower jacket arm. The telescopic mechanism is a single-cylinder double-arm cylinder, a single-cylinder single-arm cylinder or a connecting rod mechanism. The upper arm is located on the outside or inside of the upper arm, and the lower arm is located on the outside or inside of the lower arm.  The utility model is used on an automatic bag-feeding packaging machine, and the size of the bag opening can be adjusted synchronously in the process of bag taking and bagging, so that the bag opening and the hopper can be closely fitted to meet the needs of various material packaging, and the use effect is good.

2. Automatic packing of empty bags:

Due to the irregular production process and transportation process of the purchased empty bags, the irregular opening of the newly purchased bags, the bonding between bags and bags, and the hot-cutting technology used by the packaging enterprises without cold cutting, cause the bags to stick together, resulting in the difficulty of opening the vacuum sucker, which requires the bagging equipment to handle the opening of the bags. The newly purchased packaging bags can enter the next process only after the above processes are processed. The requirements of automatic packaging scale for packaging bags: the new packaging bags must be at least one side covered with film, and the bags without film on both sides can not be used. Both double-layer and film-covered bags can be used normally. Generally, the weight of the packaging bags is more than 80 grams.

3. Packaging bag transfer (suction):

Qualified empty bags are sucked up by vacuum suckers, lifting mechanism raises the bags to a certain height, mobile mechanism sends the bags to the opening position, finishing mechanism adjusts the bags to the appropriate position, and the opening process opens the bags.

4. Opening of packing bags:

Vacuum suction cup press the bag from both sides at the same time, then move from the top and bottom two directions, suck the bag mouth open. According to the size of the bag and the performance of the inside and outside bags, the number and size of the opening sucker should be determined by testing. Bag technology determines the success rate of bagging. Many bagging failures are due to the failure of opening bags, resulting in the failure of grasping bagging manipulator, or inadequate bagging, bag mouth is not standardized, even if the bagging manipulator succeeds in grasping bags, bagging will not be standardized, resulting in irregular bag mouth eventually, the possible consequence is the failure of folding and sealing process, resulting in leakage of packaging bags.

5. Filling of materials:

After empty packing bags are put into the outlet, the automatic detection device detects whether the packing bags are in place. After confirming that the packing bags are in place, the qualified materials are put into the packing bags to complete the filling of the materials.

6. Transfer, folding and sealing of packing bags:

After filling, the packing bag moves forward through the conveyor. The whole bag mechanism tidies the opening of the packing bag, then imports the folding machine to fold and seal, and completes the automatic packaging of materials.

7. The control system of automatic packaging scale:

Fully automatic packaging scale is controlled by PLC, touch screen for data management and human-computer communication. For the whole automatic packaging scale, stable operation is the most important. High quality accessories are the main factors to ensure product quality.

Functional features of SW-ABF-800 fully automatic bag-feeding packaging machine:

1. The automatic packaging machine for woven bags can realize automatic packing, automatic opening and absorbing, automatic moving and loading, automatic weighing and measuring, counting, filling, moving output and importing automatic folding and sewing bags of automatic sewing machine. The whole process of packaging is fully automated, digitized and unmanned, environmentally friendly and low energy consumption.

2. The unit is controlled by touch screen. It is convenient to operate, switch specifications and maintain. It is safe and reliable. The whole set of equipment has complete automatic detection procedures, automatic deviation correction, automatic fault detection prompts, convenient maintenance. The operation of equipment is personalized without manual involvement. The automatic fault alarm prompts the operator to locate the fault and its phenomenon, as well as the method of fault detection and treatment.

3. Automatic packaging scale SW-ABF-800 can be used in any process line that needs packaging bags to realize the automation of material packaging process.

Technical parameters of SW-ABF-800 fully automatic bag-feeding packaging machine:

1. Fully automatic packaging scale SW-ABF-800 packaging range: 20-50 kg bagged products;

2. Packaging materials: paper bags, woven bags (film), double-layer composite bags;

3. Packing speed: 200-1200 packages per hour (Packing speed varies according to material)

4. Packaging accuracy: 0.2%

5. Packaging materials: According to different materials, different feeding methods can be selected. It can be packaged with particulate matter, powder material, flake or mixture material.

6. Compressed air: 0.4-0.8 MPa, maximum gas consumption 1.6m³/min

7. Power supply: 6.2Kw AC380V (+10% 50Hz);

After-sales Service and Cautions in Use of Fully Automatic Packaging Scale SW-ABF-800

1. Preventive Maintenance Services We regularly maintain equipment, prevent possible failures, maintain stable and orderly operation of equipment, and train customer equipment operators in all aspects of equipment and spare parts maintenance and repair.

2. Production and transportation optimization services in the process of equipment operation. We equip professional technicians to periodically visit the equipment operation to ensure the safe and stable operation of the sold equipment. Customers can consult by telephone on the problems arising in the operation of the equipment. We are equipped with professional distribution personnel to deliver the equipment and spare parts needed by customers to customers in the fastest and safest way. At the same time, we choose the transportation mode with lower transportation cost for customers and optimize the transportation service through continuous efforts. We provide reliable and objective services to our customers, using modern methods, appropriate logical structure and professional ways to ensure the safe, smooth and stable operation of our equipment.
